Example:

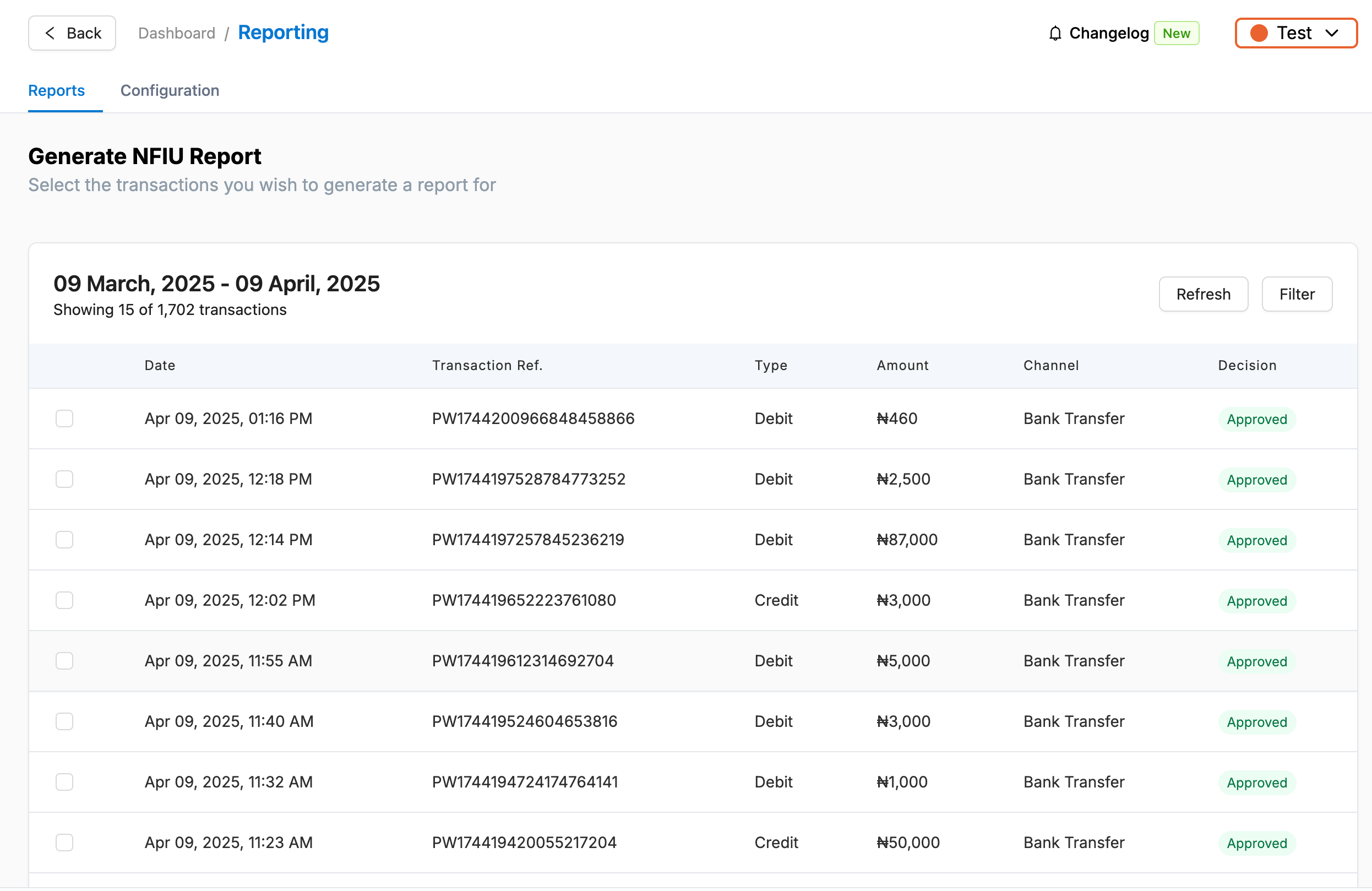

Generate report page on Sigma
Sigma provides multiple ways to generate regulatory reports, from manual creation to automated rule-based generation. Our system ensures compliance with NFIU, CBN, and EFCC requirements while streamlining your reporting workflow.

​
Report Generation Methods

​
1. Manual Report Creation

Create reports on-demand for specific transactions or activities:
1

Navigate to Reports

Go to Reporting → All Reports and click Create New Rule
2

Select Report Type

Choose from available report types: - Manual Transaction Report (CTR, FTR, STR) - For transaction-based reports - Suspicious Activity Report (SAR)
  • For activity-based reports
3

Choose Data Source

Select how to populate your report: - Upload CSV: Import transaction data via CSV file - Select Transactions: Pick from existing Transaction Monitoring data - Manual Entry: Enter suspicious activity details (SAR reports only)
4

Configure Report Details

Set up report parameters: - Filing Name: Descriptive name for the report - Reporting Agent: Authorized person filing the report (configured in Preferences) - Reporting Entity: Business entity submitting the report (configured in Preferences) - Report Type: CTR, FTR, STR (for transaction reports)
5

Review and Generate

Review all details, submit for review, and generate the final report package

​
2. Automated Rule-Based Generation

Set up intelligent rules that automatically create reports when conditions are met (requires Transaction Monitoring and AI Auto Reports to be enabled):
Automatically generate CTR reports for transactions exceeding specified amounts:
{
  "name": "Large Cash Transactions",
  "trigger": "amount > 5,000,000 NGN",
  "action": "Generate CTR",
  "category": "NFIU"
}
Create STR reports for suspicious transaction patterns:
{
  "name": "High Frequency Transactions",
  "trigger": "daily_count > 20 AND amount > 1,000,000",
  "action": "Generate STR",
  "category": "NFIU"
}
Generate FTR reports for cross-border transactions:
{
  "name": "International Wires",
  "trigger": "channel = 'international_wire'",
  "action": "Generate FTR",
  "category": "NFIU"
}

​
Report Types and Requirements

Purpose: Report large cash transactions that exceed regulatory thresholds Required Information: - Transaction details (amount, date, method) - Customer information (sender/receiver) - Account details - Institution information Typical Triggers: - Single transactions ≥ ₦5,000,000 - Multiple related transactions ≥ ₦5,000,000 in one day - Structured transactions designed to avoid reporting
Purpose: Report international transfers and foreign exchange activities Required Information: - Transfer details and amounts - Originating and destination countries - Purpose of transfer - Customer identification Typical Triggers: - International wire transfers - Foreign exchange transactions - Cross-border payments
Purpose: Report transactions that appear suspicious or potentially fraudulent Required Information: - Transaction patterns and anomalies - Reason for suspicion - Customer behavior analysis - Supporting documentation Typical Triggers: - Unusual transaction patterns - Transactions inconsistent with customer profile - Attempts to avoid reporting requirements
Purpose: Report broader suspicious activities that may not involve specific transactions Required Information: - Description of suspicious activity - Parties involved - Timeline of events - Actions taken Typical Triggers: - Money laundering indicators - Terrorist financing concerns - Other financial crimes

​
Report Workflow

​
1. Draft Stage

  • Initial report creation with basic information
  • Data entry and validation
  • Attachment uploads (optional)
  • Internal review preparation

​
2. Pending Review

  • Report submitted for review by clicking “Submit for Review”
  • Automatic notification to authorized reviewers with “can review reports” permission
  • Status visible in dashboard with badge counts for each status

​
3. Review Process

  • Compliance verification by authorized personnel
  • Data accuracy checks
  • Approval or rejection decisions with comments
  • Review logs maintained for audit trail

​
4. Final States

  • Accepted: Report approved and ready for submission
  • Rejected: Report rejected with feedback for corrections
  • Reviewed: Report reviewed but pending final decision

​
5. Report Generation & Submission

  • Generate final XML report file with attachments using “Generate Report”
  • Download report package (ZIP format) containing XML and supporting documents
  • Submit directly to NFIU through the platform using “Submit to NFIU”
  • Complete audit trail and submission records maintained

​
Data Requirements

​
Transaction Data Format

For CSV uploads, ensure your transaction data includes:
transactionNumber,transactionDate,transactionMode,type,amount,narration,senderCountry,senderFundsCode,senderInstitution,senderAccount,receiverCountry,receiverFundsCode,receiverInstitution,receiverAccount
TXN-001,2025-01-15T14:30:00.000Z,C,TRANS,5750000,personal,NG,K,Access Bank Plc,012345,NG,K,Bank PHB Plc,067890

​
Required Fields

  • Transaction Number: Unique identifier - Date: ISO format timestamp
  • Amount: Numeric value in local currency - Type: DEPS (Deposit), WTHD (Withdrawal), TRANS (Transfer) - Mode: A (In-branch), B (ATM), C (Electronic), O (Other)
  • Institution Name: Financial institution - Account Number: Account identifier - Institution Code: Bank code (optional) - Country: ISO country code - Funds Code: Source/destination of funds

​
File Generation and Export

​
XML Report Format

Sigma generates reports in NFIU-compliant XML format (Schema Version 5.1):
<?xml version="1.0" encoding="UTF-8"?>
<report schema_version="5.1">
  <rentity_id>12345</rentity_id>
  <submission_code>E</submission_code>
  <report_code>CTR</report_code>
  <submission_date>2025-01-19</submission_date>
  <currency_code_local>NGN</currency_code_local>
  <!-- Transaction and party details -->
</report>

​
Report Package

Generated reports include:
  • XML File: Main report in regulatory format
  • Attachments: Supporting documents organized by transaction
  • ZIP Archive: Complete package ready for submission

​
Best Practices

  • Verify Transaction Details: Double-check amounts, dates, and parties - Complete Customer Information: Ensure all required fields are populated
  • Consistent Formatting: Use standard formats for dates, amounts, and codes - Regular Validation: Implement checks to catch errors early
  • Meet Deadlines: Submit reports within regulatory timeframes - Monitor Thresholds: Track transactions approaching reporting limits - Automate Where Possible: Use rules to catch reportable transactions - Review Regularly: Check for missed reporting opportunities
  • Maintain Audit Trails: Keep detailed records of all reporting activities - Document Decisions: Record rationale for reporting or not reporting - Store Supporting Evidence: Keep transaction records and documentation - Regular Backups: Ensure report data is properly backed up
Regulatory Compliance: Always ensure reports meet current regulatory requirements. Consult with compliance officers and legal counsel when in doubt about reporting obligations.
Report Storage: All generated reports are securely stored and can be re-downloaded or resubmitted as needed. The system maintains a complete audit trail of all reporting activities.
